Air target products
Sleeve targets
Overview
Product range – Sleeve targets

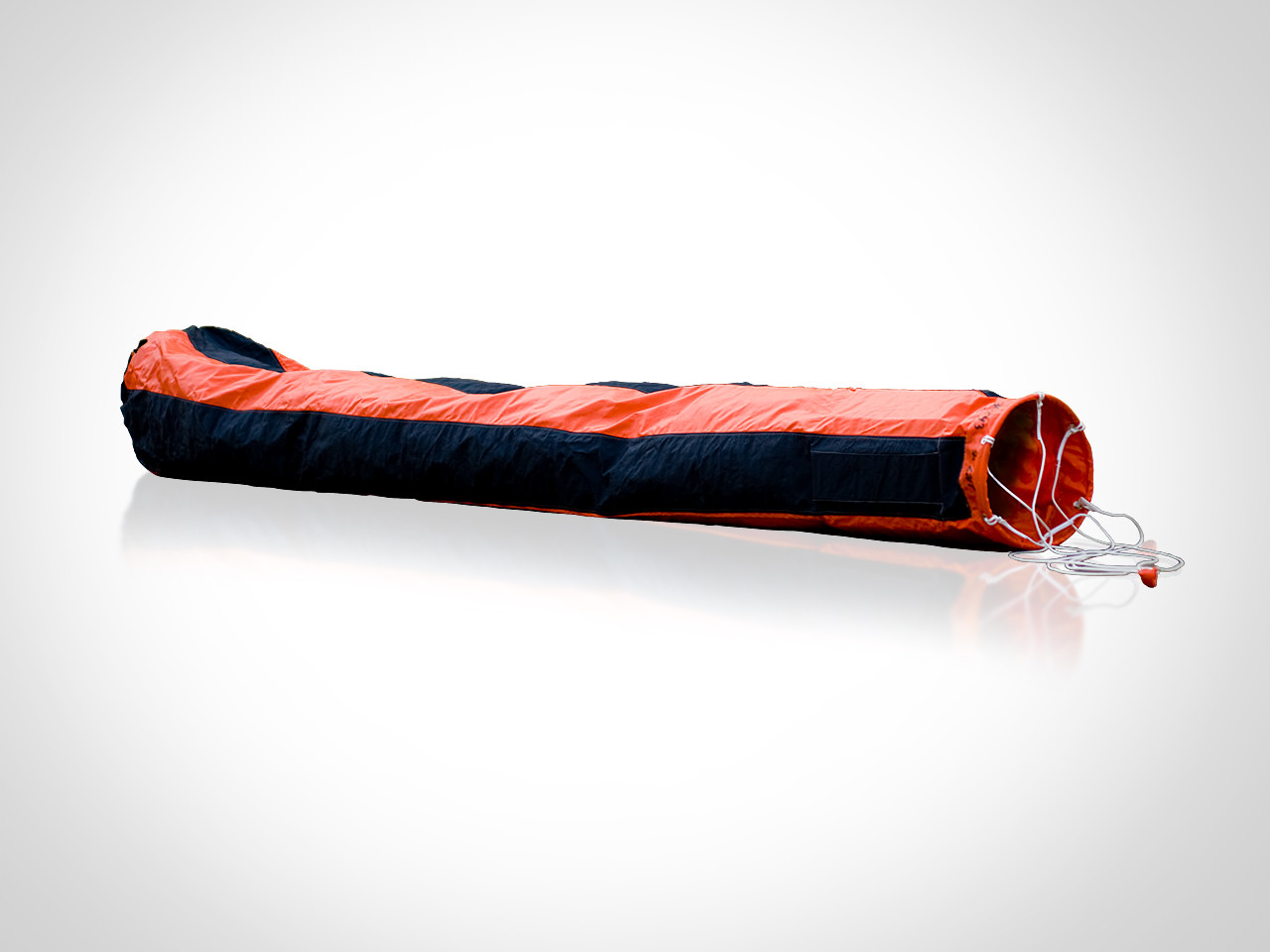

Sleeve target S30Z43/44
The sleeve target has a slight conical shape. It is manufactured of a thin, light weight, nylon textile fabric coated with polyurethane. It consists of a circular half spheric end, and six longitudinal gores. The end and every second gore are made of a black fabric with metal foil laminated to the inside. Remaning gores are non-laminated and glow-orange. The front part of the sleeve is provided with a wire rope used for attachment of six pull ropes. Flight stability is achieved by the three air outlet holes at the end of the sleeve. SHORT radar reflective sleeve for LIGHT TOWING AIRCRAFT AND TARGET DRONES
- For speed range 70- 220 knots
- Designed for Ground-to-Air gunnery practice
- Adaptable to Miss Distance Indicator attached in front of sleeve
- Model S30Z43: Contains floating elements to keep both the sleeve and indicator floating.
- Model S30Z44: Without floating capability.

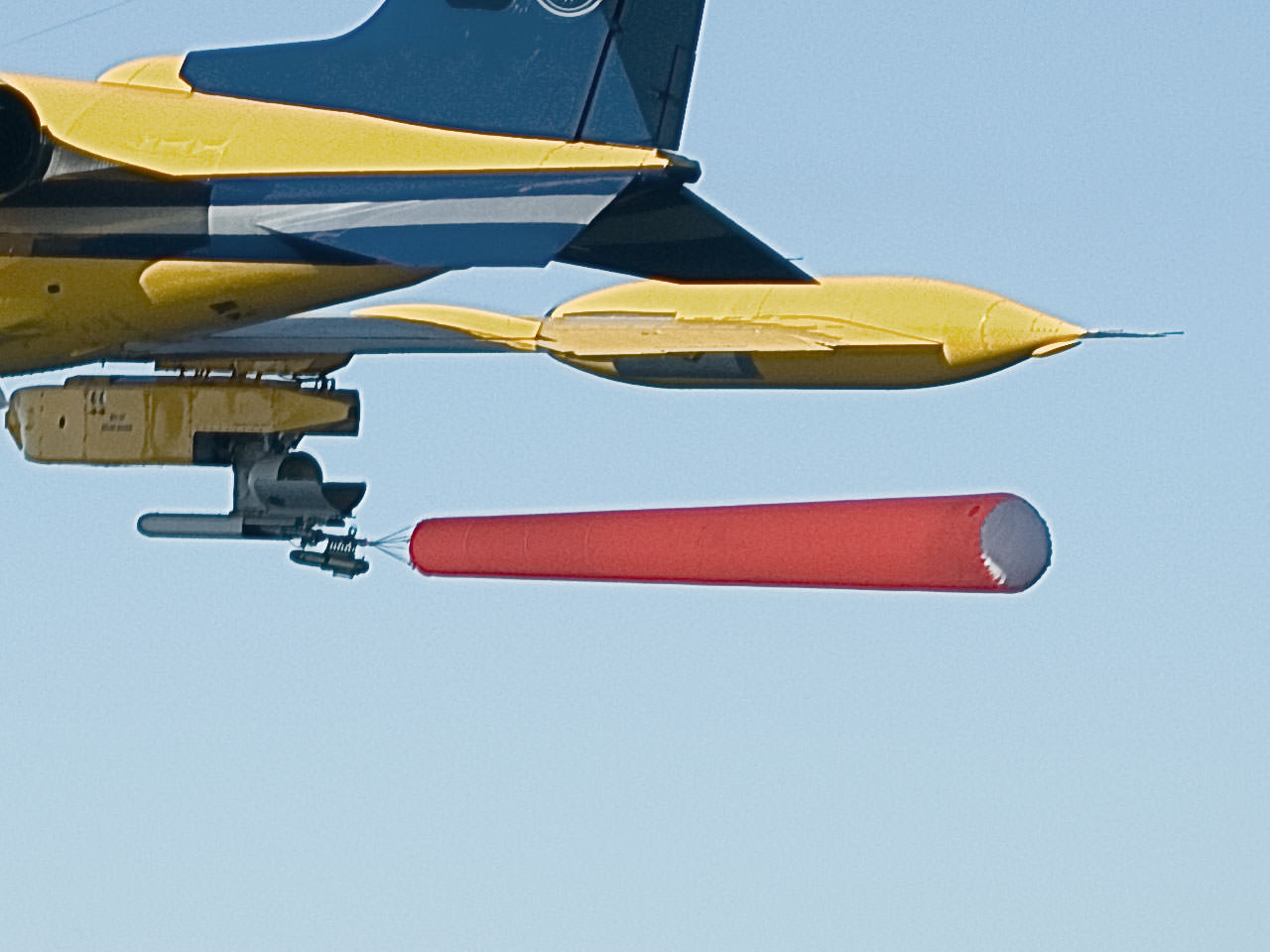

Sleeve target KRN 27-45
The sleeve target has a slight conical shape. It is manufactured of PVC coated fabric. It consists of a circular half spheric end, and two longitudinal orange colored gores. The front part of the sleeve is provided with a wire rope used for attachment of six pull ropes. The copper cone is attached in the front and the metallized mesh inside the sleeve. Flight stability is achieved by the three air outlet holes at the end of the sleeve.
- Sleeve for HIGH and LOW speed operation
- For speed range 100-350 knots
- Designed for Ground-to-Air and Air-to-Air gunnery practice
- Adaptable to Miss Distance Indicator attached in front of sleeve
- Radar reflective
- Good survivability
